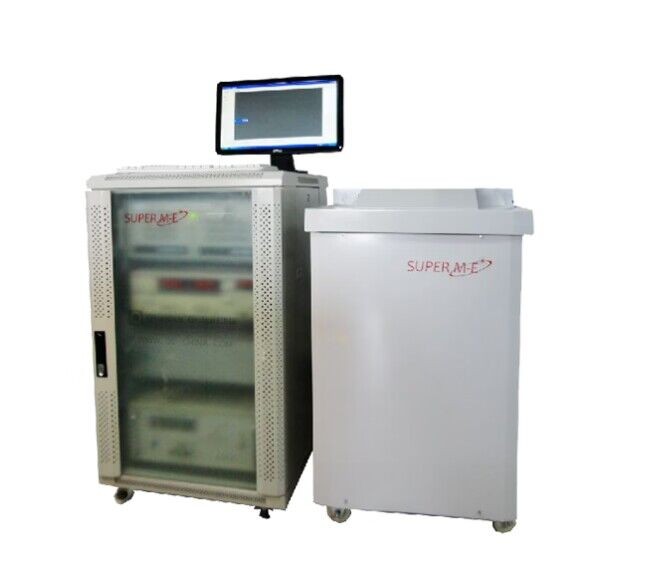

Multi ferromaterial magneto electric measurement system - SuperME
The magneto electric interaction in multiferroic materials has become a research focus for scientists due to its broad application prospects.has launched a highly automated multiferroic magnetoelectric measurement system based on the existing measurement methods in Professor Nan Cewen's laboratory at Tsinghua University, after further improvement.
This system allows users to directly measure the magnitude and phase of the positive magneto electric coefficient of the sample as a function of the bias DC magnetic field, the amplitude and frequency of the applied AC magnetic field, the angle between the sample and the magnetic field, and the temperature. And the system comes with visual and fully automatic operation software, ensuring that users can obtain reliable measurement data in a short period of time.
Application field:
Multiferroic material
Basic measurement parameters:
+Measurement accuracy range of magneto electric signals: 1uV (phase-locked)
+Phase range: -180~180
+Phase accuracy: 1 degree
+Large communication frequency: 1M Hz
+Large DC magnetic field: ± 1T
+Magnetic field control accuracy:<2 Oe
+Large AC magnetic field: 6 Oe
+Automatic angle accuracy: 1 degree
+Accuracy of resistivity measurement: 0.5%
+Temperature range: 90K~300K
+Temperature stability: ± 0.5K
Equipment features:
+Turnkey system
+User friendly interface
+Improving signal-to-noise ratio through communication modulation
+Upgradable ferromagnetic resonance testing
+Measurement software with script functionality
