Continuous annealing experiment and simulation system

Continuous annealing experiment and simulation system

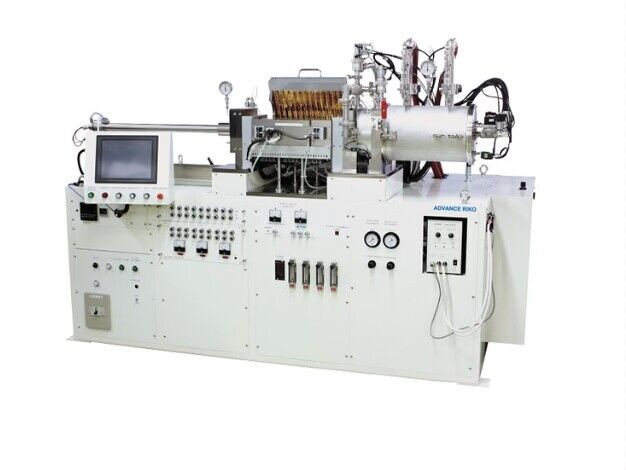

The continuous annealing experiment and simulation system CAS-AY II launched by the company uses an infrared gold surface reflection furnace with rapid heating and gas/mist cooling functions to achieve rapid heating and cooling. The CAS-AY II system can accurately simulate the heat treatment process of steel materials, and can achieve universal heat treatment experiments and heat treatment process simulations for steel plates, stainless steel plates, and magnetic steel plates.
application area
+Continuous annealing simulation experiment of thin steel plate;
+Annealing experiments and surface treatment experiments on sheet metal under various atmospheres;
+Heat treatment experiments during the aging process of steel plates
Equipment characteristics
+Accurate control of sample heating and cooling temperatures;
+Can achieve good temperature uniformity on the surface of steel plates;
+Independent cooling chambers can achieve rapid cooling
Basic parameters
Temperature range: 50 ℃ -1000 ℃ (up to 1150 ℃)
Atmosphere: Nitrogen, air
Sample size: 70mmW * 220mmL * 0.5-2.0mmT
Heating rate: up to 30 ℃/s
Cooling rate: large -70 ℃/s (1000 ℃ -400 ℃)
Equipment size: approximately 2900mmW * 1000mmD * 1700mmH
sample size
70mmW x 220mmL x 0.5-2.0mmT (standard sample 1.2mmT);
Approximately 2 standard tensile specimens can be obtained.
