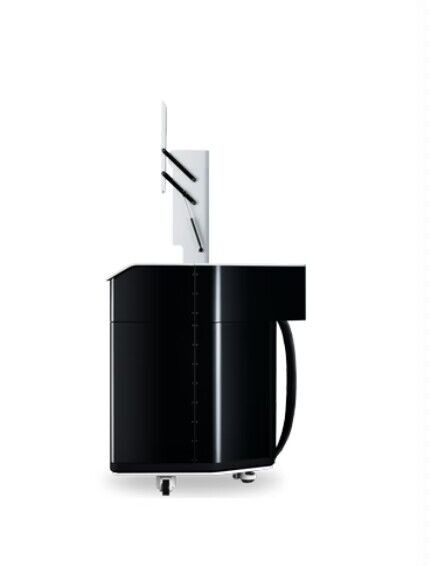

MK level multifunctional ultra stable ultra-low temperature system
Kiutra, a German company, adheres to the universal and concise design concept of low-temperature equipment, and produces extremely low temperature magnetic refrigeration systems that stand out for their high quality, reliability, and ease of use. The modular design scheme makes the system configuration very flexible and can be continuously upgraded. Compared to other commercial magnetic refrigeration systems, Kiutra can provide a mature continuous magnetic refrigeration (c-ADR) solution.
The adiabatic demagnetization low-temperature thermostat produced by Kiutra Company is based on a fully dry closed-loop refrigeration machine, and can easily achieve extremely low temperatures below 1K through adiabatic demagnetization refrigeration technology. The system can be equipped with four levels of ADR and different refrigeration media to optimize refrigeration power, refrigeration efficiency, and low system temperature. With this scheme, the Kiutra adiabatic demagnetization low-temperature thermostat can achieve one-way cooling of 100 mK and uninterrupted continuous cooling of 300 mK.
application area
Superconducting nanowire single photon detector
High voltage related research
Optical and optoelectronic
Product features
☆ Strong research background and technical support
☆ Innovative integrated design, "turnkey project" thermostat
☆ Adopting a two-stage adiabatic demagnetization unit, it can achieve continuous low-temperature operation
☆ Full dry system, completely eliminating the need for rare refrigerants such as He3
Solid state refrigeration technology, simpler and more user-friendly
☆ Supports fast sample changing, sample cooling only takes 3 hours
Main technical parameters
Quick pattern change:
☆ Temperature range: 100 mK -300 K
Time required for the sample to drop from room temperature to 100mK:<3 hours
☆ Continuous working mode temperature: 300 mK
☆ Change time: 10 minutes
Standard type:
☆ Temperature range: 100 mK -300 K
☆ Sample space: 150 x 300 mm
☆ Continuous working mode temperature: 300 mK
Optical type:
☆ Temperature range: 300 mK -300 K
☆ Magnetic field size in the sample area: 3 T
☆ Free beam channel diameter: ＞ 20 mm
