Piston-cylinder high-temperature and high-pressure device

Piston-cylinder high-temperature and high-pressure device

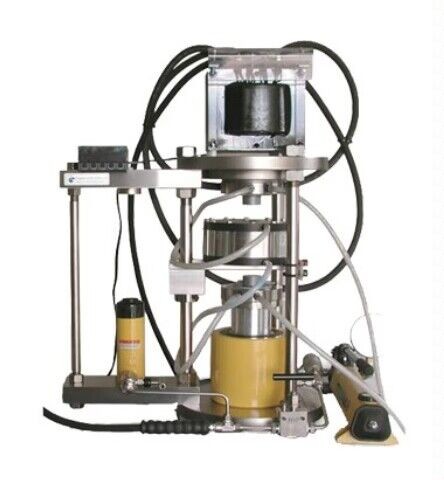

The company's QuickPress piston cylinder high-temperature and high-pressure synthesis device is compact in size (only requiring a working area of 120 × 60 × 60cm), easy to operate, and provides a large chamber static high-pressure sample environment. High pressure of 4Gpa, high temperature of 1800 ℃, sample size length of up to 5mm, and uniform and stable temperature field. This instrument is widely used in the field of high-temperature and high-pressure experimental research, and can conduct research related to earth science, high-pressure physics, condensed matter physics, solid chemistry, materials science, and other fields.
The system includes a host, cooling water circulation equipment, sample assembly, forming tools, and sample warehouse welding equipment.

Equipment characteristics
*Can achieve high temperature and high pressure environments
*High pressure can reach 4Gpa
*High temperature up to 1800 ° C
*Mini size and small footprint

Basic parameters
Pressure range: 0.3-4.0Gpa, control accuracy+0.03GPa
Temperature range: 25 ℃ -1800 ℃
Temperature gradient:+15 ℃
High quenching rate: 300 ℃/s

Sample size:
90mm3 uses a 10mm inner diameter pressure plate, capable of pressurizing 4.0Gpa
150mm ³ using a 13mm inner diameter pressure plate, capable of pressurizing 2.5Gpa
500mm3 can be pressurized to 1.0Gpa using a 19mm inner diameter pressure plate
Continuous running time: minutes to months
(1kbar=100MPa=0.1Gpa=14500psi=987 standard atmospheric pressure)

Pistons, pressure plates, water-cooled kits
temperature controller
During the operation of QuickPress, temperature, current, and voltage monitoring is easy to operate and has strong safety. By adjusting the heating current output, the sample temperature is controlled and the heating and cooling rates are adjusted. Suitable for various types of thermocouples.
Dimensions: H x W x D 15cm x 46cm x 31cm
Thermocouple types: PT-Pt10Rh, PT-Pt13Rh
W5Re W26Re, Chrome Aluminum, J, E, T, L, N, B
Temperature stability: ± 2 ℃
Automatic safety protection: high temperature, high output voltage/current, cooling water failure
Temperature controller
application area
*High temperature isostatic pressure research
*Thermodynamic research
*Electrical research
*New material synthesis, including new ceramic materials, high-temperature superconducting structures, amorphous nitrides and phosphides, metal hydrides, and other material science topics

Sample assembly
Depths of the Earth provides you with a complete range of sample assemblies and consumables of different specifications, making your research more convenient and efficient:
Bottom plug and insulator, alumina thermocouple insulator, crushable magnesium oxide hollow column, graphite tube, hot furnace glass insulator (only applicable to high temperature test, T>950 ℃), glass rod, thermocouple wire insulator, alumina insulation sheet, alumina adhesive, bottom plug support block insulator, lead foil
