1、 The main purpose and characteristics of the instrument:

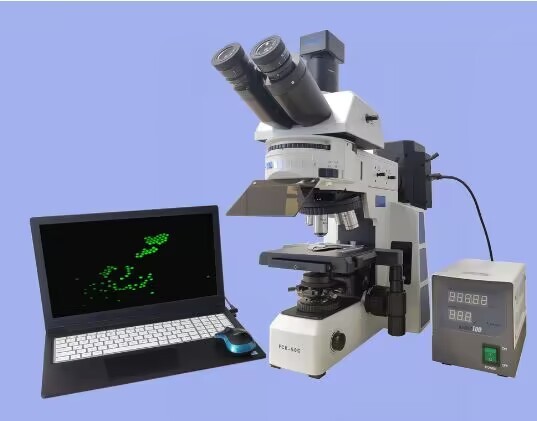

The research oriented FCK-50C new upright fluorescence microscope gathers the research and development achievements and technological wisdom of optical factories in the field of microscopic optics over the years. With a core design concept of wholeheartedly pursuing safety, comfort, and efficient user experience, it innovates the humanized design of products. The system combines modular functions, high-definition optical images, and simple operating mechanisms to easily achieve various professional observations and diagnostic analyses such as bright fields and fluorescence, fully meeting the needs of users in scientific research, medical and other fields.
Large scale platform for left and right hand positions
The new platform adopts a bidirectional rail transmission mechanism, which can solve the safety hazards caused by the protruding lateral guide rails of traditional platforms, and play an overload protection role at the end of the bidirectional travel, improving the reliability of the mechanism. At the same time, rail transmission technology brings a more comfortable operating experience.
The adjustment handle of the loading platform can be installed on either side of the platform according to customer needs, to suit the usage preferences of different customers. The ergonomic design with low hand position and dual axis adjustment of X and Y allows for easy and user-friendly pressure free operation, improving work comfort.
Using a damping type double slice clamp, it can simultaneously hold two slices for quick comparative analysis, with a movement range of 80mmX55mm. Precision of 0.1mm.
The surface of the loading platform adopts a special surface treatment process, which is anti-corrosion and wear-resistant. The circular arc transition design around the platform reduces stress concentration while preventing damage caused by collisions.
The light blocking film is available for selection, which can effectively reduce the interference of scattered light in the transmission direction during the observation of reflected fluorescence, and improve the image contrast.
Modular body, improving system compatibility
The FCK-50C biological rack adopts a modular structure design, with the horizontal arm separated from the microscope body, thus achieving compatibility with the biological/fluorescence rack system and more flexible selection.
High sensitivity coarse fine adjustment coaxial focusing mechanism
The new focusing mechanism adopts a two-stage transmission system of coarse and fine adjustment, equipped with an elastic adjustment device and a random upper limit device. The weight of the coarse adjustment mechanism can be adjusted by itself, and any position can be set as the coarse adjustment upper limit. Roughly adjust the stroke by 25mm, and improve the precision of fine adjustment to 1 μ m. A highly sensitive fine-tuning mechanism can not only perform precise focusing, but also perform precise measurement.
Design of a multi range splitting ratio observation head
The all-new FCK-50C series observation tube adopts a wide beam imaging system design, supporting 26.5mm ultra wide field of view observation, bringing you a brand new wide field of view experience.
The three stage hinge three eye observation tube adds an additional 20% for binocular observation and 80% for microscopic photography, on the basis of 100% imaging light used for binocular observation or three eye photography, making it convenient for users to compare and observe images under the mirror and video images simultaneously.
The two level front image hinge three eye observation tube ensures that the direction of sample movement is consistent with the direction you observe through the eyepiece, making the operation more convenient.
