High brightness liquid target X-ray source

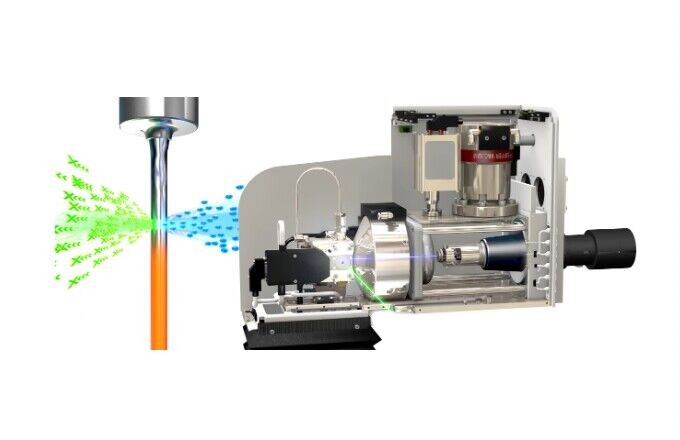

Excillum is located in Stockholm, the capital of Sweden, and is a company dedicated to the research and production of ultra-high brightness micro focal spot X-ray light sources. After more than ten years of research and development and improvement, Excillum has mastered advanced liquid metal jet (MetalJet) X-ray light source technology, which can bring 10 times the X-ray flux emitted by ordinary solid anode X-ray light sources (on the same focal spot area). Because liquid metal jets can withstand higher power electron beam bombardment, they can achieve higher X-ray flux. The solid metal anode in traditional micro focal spot X-ray generators is being replaced by liquid metal jets!
Application directions: imaging, scattering/diffraction, spectroscopy/fluorescence characteristics
Product features
Extremely high power of micro focal spot light source
• Optional shutter
Stable X-ray intensity and focal spot position
LaB6 Long Life Cathode
Integrated radiation shielding cover
• Friendly user graphical interface
Adjustable focal spot size and aspect ratio
Adjustable exit angle
• Optional X-ray dual outlet
• Low maintenance costs
No need for external cooling water
• Can be operated remotely
main parameter
Target material: alloys of gallium (Ga) or indium (In)
Anode type: liquid metal jet
• Maximum acceleration voltage: 70 kV or 160 kV
Maximum output power: 300 W or 1000 W
Maximum tube current: 4.3 mA/6.25 mA
Minimum focal spot diameter: approximately 10 μ M
Light source intensity stability:<1% (standard deviation)
Stability of focal spot position:<1 μ M
Minimum distance from focal spot to sample: 18 mm
Divergence angle: 13 °/30 °
