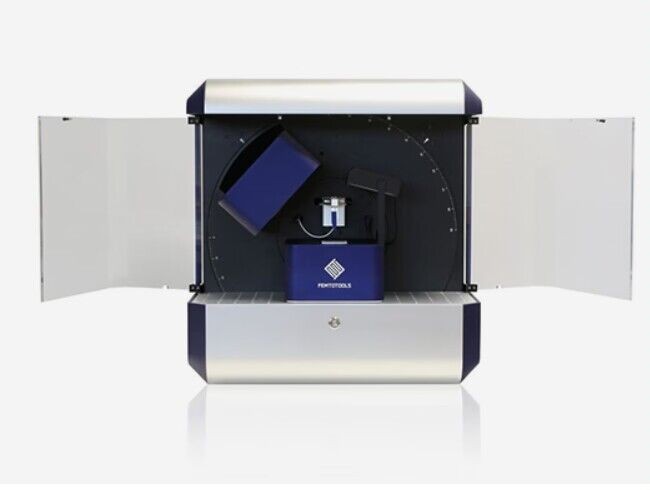

FT-MTA03 Micromechanical Testing and Assembly System

FT-MTA03 Micromechanical Testing and Assembly System
The main products of FemtoTools include pressure sensor probes, nano mobile platforms and positioning systems, data acquisition and control systems, etc. They can be used in optical microscopes, probe stations, or electron microscopy environments, combined with their unique micro nano mechanical sensing probes or micro clamps, to test the mechanical properties of samples or manipulate them at the micro nano scale. The product has been widely applied in biology and bioengineering, materials science, MEMS characterization, micro robotic arms, nanotechnology, and other fields, constantly creating exciting new possibilities for customers.
A testing instrument used for accurately and quantitatively measuring the mechanical properties and sample size/geometric structure at the micro and nano scales. Its diverse and flexible testing modes can meet various applications and requirements of users, providing a comprehensive and complete solution for microstructure analysis. It is the most fully functional micro mechanical testing system.
Analysis provides a comprehensive and complete solution, making it the most fully functional micro mechanical testing system.Parameter configuration
FT-MTA03 integrates the functions of nanoindentation, micro tension, profilometer, and universal microstructure analyzer. Its force measurement range is ± 200mN, and its mechanical resolution can reach 0.5nN (9 orders of magnitude). It can measure displacement from 0.1nm to 29mm in the triaxial direction (8 orders of magnitude). The FT-MTA03 is equipped with a high-resolution microscope, which has a very high working distance of 95mm and can rotate 180 ° above the sample. Equipped with a 3 megapixel CMOS USB camera, it can choose from three adjustable LED lighting principles: coaxial lens illumination, ring light, and diffuse backlight.
FT-MTA03 is lightweight and convenient, with a size of only 44x39x46 (cm), suitable for horizontal testing, vertical testing, or testing from different angles. By equipping different types of FemtoToolsFT-S micro motion sensing probes, it can be used for measurement in the range of nN to mN. In addition to mechanical testing and analysis, FT-G micro tweezers can also be equipped for micro assembly or sample preparation.

software function
A user-friendly graphical user interface (GUI) suitable for Windows systems
Force controlled and deflection controlled nanoindentation
Loop testing and dynamic mechanical analysis (DMA)
2D and 3D image mapping
Visualization, recording, and export of measurement data
A software library for creating custom testing principles and sequences
