Low temperature strong magnetic field non liquid helium scanning probe microscope system attoDry Lab
Founded in 2002, Attocube Systems AG, a young instrument supplier in the field of nanoscience, has developed low vibration, liquid helium free magnets and thermostats, scanning probe microscopes operating under various low-temperature magnetic fields, and nano precision displacement sensors for extreme environmental applications in just a few years, thanks to its mastery of nano precision positioning achievements and strong technical strength The series of products such as Pimi precision displacement laser interferometer are highly praised by users. Since its establishment, Attocube Systems AG has received many honors, including Finalist for the 27th Innovation Award of the German Economy 2007 and 00 Innovation Award 2013.

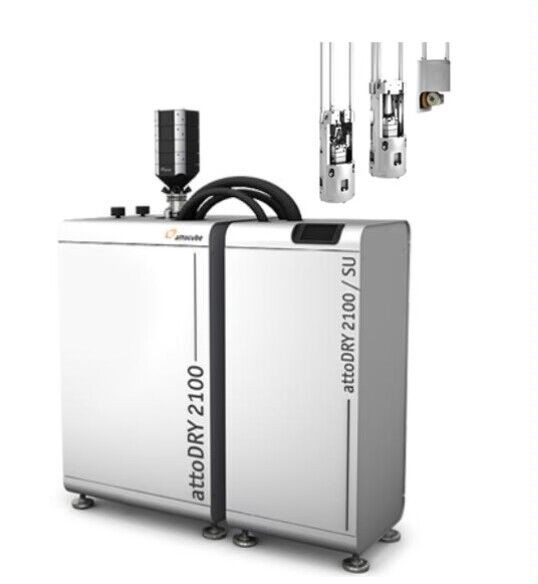

The attoDRY Lab series non liquid helium low-temperature strong magnetic field scanning probe microscope system launched by German company attocube is based on the attoDRY series non liquid helium strong magnetic field ultra-low vibration thermostat and various scanning probe microscope plugins. It is particularly suitable for low-temperature optical experiments, scanning probe microscopes and other applications. The excellent stability of the product lays a solid foundation for ultra-high resolution surface characterization research. Not only that, the product has also integrated a simple and easy-to-use touch screen control system to facilitate the free control of temperature and magnetic field strength in commercial thermostats. The scanning probe microscope plugin includes: atoAFM/MFM/c-AFM/PRFM atomic force, magnetic force, conductive force, and piezoelectric force microscopes; AttoCFM confocal microscope; Raman and photoluminescence spectra; Atto3DR dual axis rotating platform, etc.
Equipment features:
♦ No liquid helium, closed-loop recyclable system
♦ Unique design, ultra-low vibration (0.12 nm RMS)
♦ Multi functional measurement platform: AFM/MFM/c-AFM/PRFM/CFM/RAMAN
♦ Ultra high temperature stability
♦ Fully automatic control, touch screen control
♦ Rapid cooling: 1-2 hours of sample cooling
Upgradable low-temperature strong magnetic field atomic force/magnetic force/piezoelectric/conductive power microscope
Upgradable low-temperature Raman/transmission/polarization extinction module
Upgradable low-temperature dual axis rotary table
Application field:
Especially suitable for applications such as low-temperature optical experiments and scanning probe microscopes.
Basic parameters:
♦ Closed loop system: operation does not require liquid helium
♦ Fully automatic temperature control: 1.8-300K
♦ Large magnet range: 0-12T, vector magnet optional
♦ Low temperature achromatic objective: NA=0.82
♦ Sample movement range: 5mm x 5mm x 5mm
♦ Sample scanning range: 30mm x 30mm
