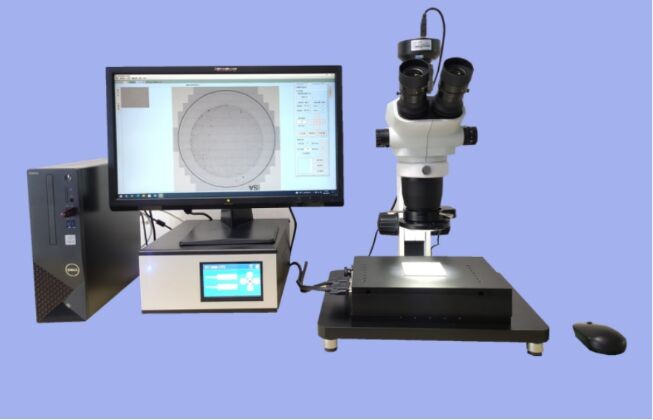

Cleanliness Analysis System/Membrane Cleanliness Analysis
2. Electric control XY mobile station
Platform Travel: Horizontal * Vertical=80 * 70 (in mm)
Screw lead: 2000 μ M
Repetitive positioning accuracy: ± 5 μ Within m
Precision of repeated measurements: ± 3 μ M
Resolution under l8 subdivision: Single step 1.25 μ M
Resolution under l16 subdivision: single step 0.625 μ M
Step angle of stepper motor: 1.8 °
Rated working current: single axis 0.65A (24V power supply)
Maximum load: ≥ 5kg
Maximum round-trip clearance: 5 microns
The mobile control box is equipped with buttons, which can manually control the movement of the device
Communication with PC using universal 232 serial port (19200 baud rate)
Serial port control, capable of setting the motor's movement speed, distance, and direction
3. DC-3000 cleanliness analysis software
Equipped with an electric mobile platform, it automatically completes the scanning process of the entire filter membrane, and after scanning, it automatically assembles the complete image,
Executive standards: ISO 16232, ISO 4406/4407, GB/T14039, GB/T20082-2006
Scanning time: The automatic scanning time for a 50mm filter membrane is about 10 minutes
Report: Supports multiple report formats, which can be customized according to customer needs.
