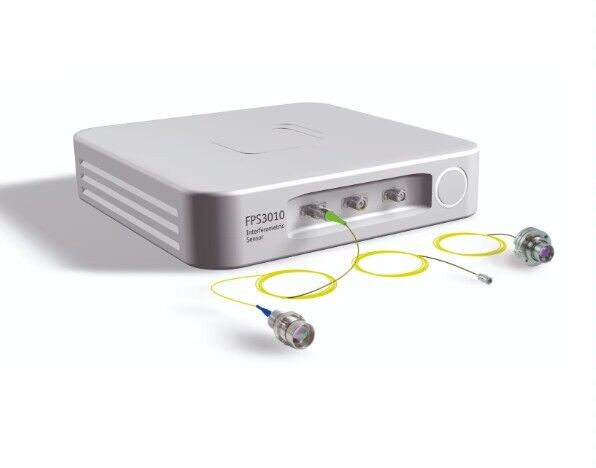

The attoFPSensor series displacement laser interferometer produced by the company fully meets the industrial and scientific needs of high-resolution displacement and positioning. Its compact design and stability can be used in extreme environments, achieving a displacement resolution of 25pm and a sampling rate of 10MHz within the displacement measurement range. Its application range covers closed-loop scanner calibration, sample or module displacement, processing industry, engine displacement detection, and other fields.
AttoFPSensor product features
+Easy to use, atoFPSensor automatic software control and calibration
+Fast measurement speed, attoFPSensor positioning sample sampling bandwidth of 10MHz, resolution of 25pm
+Real time data collection interface, attoFPSensor uses Ethernet or HSSL to achieve real-time output of positioning data
+Multi axis simultaneous measurement, attoFPSensor equipped with independent three-axis locator, allowing for simultaneous displacement measurement, data processing, and positioning output
+Accuracy, atoFPSensor locks molecular adsorption frequency as a reference value, and the obtained localization information has measurement significance
+Small volume displacement measurement interferometers in the world, with a diameter of 15mm and a length of 12mm
The technical characteristics of attoFPSensor
+Multidimensional displacement interferometer
+Complete system configuration
+Real time digital interface
+High speed FPGA control unit
+10MHz sampling rate
+Sample displacement rate of 1m/s, optional with faster rate
+Detectors based on single-mode optical fibers
+Compatible with vacuum and extreme environments
Unique advantages of attoFPSensor
+High bandwidth displacement detection
+Closed-loop displacement control
+Vibration measurement within the MHz range
+Target sample thermal load<75uW
+Detectors do not require electronic device linking
+Industrial design
+Extremely reliable and stable
