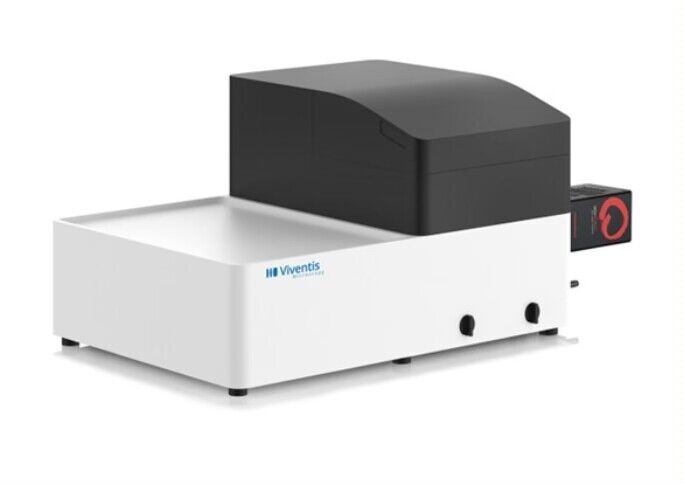

Long term high-resolution organoid light microscopy - LS2

Long term high-resolution organoid light microscopy - LS2
——Long term, high-throughput, live cell optical imaging system

The high-throughput live cell high-resolution light microscope LS series launched by Swiss company Viventis is a new light imaging platform mainly used for low phototoxicity and high-resolution long-term imaging of active photosensitive samples (such as eggs, embryos, organoids, etc.).
High throughput live cell high-resolution light microscopy is a special imaging technology developed in recent years. Its illumination light is a thin light film parallel to the imaging plane, only the sample in the focal plane is illuminated, while the samples above and below the film are not affected. The real-time imaging of the imaging system at the cellular and tissue levels is crucial for a deeper understanding of biological behavior. Especially suitable for diameters up to 300 μ Long term real-time observation and imaging of photosensitive samples (such as oocytes, embryos, and organoids) with high spatiotemporal resolution and low phototoxicity.
★ Bilateral illuminated light microscope
Both sides of the lighting can be controlled through software input, and the translation and rotation of the beam can be controlled with just a click of the mouse. The thickness of the optical film is only 1.5-6 μ m. And the thickness can be adjusted and the position can be automatically calibrated to adapt to more sample sizes. Combined with high NA objective lenses, better penetration depth and fewer artifacts can be achieved. In addition, the system is configured with a visible excitation laser, which allows users to quickly locate and image areas of interest in custom samples through the detection objective lens.
★ The software interface is simple and easy to use
For beginners in optical imaging, the Viventis system is easy to operate, with a one click switch between multiple modes and a simple software interface. It can help you quickly embark on a journey of optical imaging, open the door to lightsheet, and assist in scientific research.
★ High throughput, simultaneous imaging of multiple samples
Viventis light microscopy can quickly image multiple samples simultaneously without the need for sample replacement. It supports the vast majority of embryonic samples and can be placed side by side, making it convenient for adding culture media, adding drugs, and other operations. Long working distance (sample slot size>50mm), and the system can record multiple sites and continuously collect data.
Viventis also provides a better solution for samples that are easy to float, such as cell spheres and organ like bodies. It adopts artificial basement membrane/hydrogel embedded and other solutions to achieve stable imaging of the above samples.
