High temperature microstructure observation system

High temperature microstructure observation system

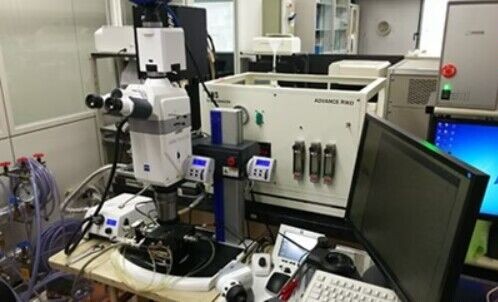

The company's high-temperature microstructure observation system can heat the sample to 1600 ℃ under precise temperature control, thereby observing the microstructure changes of metal materials such as crystal transformation, precipitation, solidification, etc. The system consists of three parts: a microscope, an infrared gold reflection furnace, and a temperature control system.
Applicable fields
+Observe the crystal transformation, precipitation, and solidification of metal materials;
+Observing the changes in the microstructure of different material bonding surfaces and crystal growth;
+Observing the thermal cycling process of polymer material crystallization, melting, and re solidification
Product features
+The infrared gold reflection furnace can achieve heating up to 1600 ℃;
+Fast and accurate temperature control;
+Available in multiple atmospheres and vacuum
Basic parameters
Temperature range: room temperature~1600 ℃
Atmosphere: air, inert gas, vacuum
Sample size: φ 5mm x 5mmT
System size (control box): approximately 650mmW x 500mmD x 450mmH
Observation system (digital zoom microscope):
Objective lens 1 x+automatic zoom (0.7 x -11.2 x)
Eyepiece 16 x Field of View 1.4mm-23mm
