Dissolution depth microscope/Dissolution depth measurement analyzer DRM-300C
The penetration depth microscope system DRM-300C is suitable for testing metal welded parts in various industries. It adopts the national standard for metal welding penetration depth: HB5282-1984 Quality Inspection for Resistance Spot Welding and Seam Welding of Structural Steel and Stainless Steel, and the industry standard HB5276-1984 Quality Inspection for Resistance Spot Welding and Seam Welding of Aluminum Alloy. It is currently widely used in automotive parts, steel structural welded parts, and the construction and bridge industry.
（2） Welding penetration detection technology using penetration depth microscope
--Penetration depth microscope for measuring welding penetration depth
With the continuous development of welding technology and the improvement of welding technology, the requirements for welding quality in various industries are also increasing. The upgrading of the penetration microscope industry is urgent, and the detection of welding quality is crucial for the industrial upgrading of the mechanical manufacturing industry. In response to this situation, Shanghai Caikang Optical Instrument Factory has professionally developed and designed a welding quality detection system that meets industry standards (HB5282-1984 Structural Steel and Stainless Steel Resistance Spot Welding and Seam Welding Quality Inspection, Microscope for Measuring Welding Penetration HB5276-1984 Aluminum Alloy Resistance Spot Welding and Seam Welding Quality Inspection). The penetration detection microscope DRM-200C is equipped with a sample welding point cutting machine, pre grinding machine, polishing machine, chemical treatment reagents, penetration microscope system DRM-200C, and planar penetration measurement system DS-3000. The welding penetration microscope system can image, edit, measure, export data, and print reports on the penetration of the docking, handover, overlap, and T-shaped welding parts of welding products. The welding depth detection industry of automotive components widely uses our factory's micro measurement system for welding depth. Below are the actual cutting, shooting, and measurement results of products from Shanghai Caikang Optical Instrument Factory. Compared with similar products, this system has the characteristics of clear imaging, high contrast, and high accuracy, and can achieve true color observation and photography effects. High precision welding depth micro measurement.
2、 Application scope of penetration microscope
The Cai Kang Penetration Microscopy System DRM-300C is suitable for testing metal welded parts in various industries. It adopts the national standard for metal welding penetration: HB5282-1984 Quality Inspection of Resistance Spot Welding and Seam Welding of Structural Steel and Stainless Steel, and the industry standard HB5276-1984 Quality Inspection of Resistance Spot Welding and Seam Welding of Aluminum Alloy. It is currently widely used in the automotive parts, steel structural welded parts, and construction and bridge industries.
The computer-based penetration microscope DRM-200C is a high-tech product developed by combining optical microscopy technology, photoelectric conversion technology, and computer imaging technology. Thus, we can transform research in the micro field from traditional binocular observation to computer reproduction, and capture and record observation images at any time for analysis, rating, and other purposes. We can also save or print high pixel observation images, achieving the transition from human vision to machine vision and from qualitative inspection to quantitative inspection, greatly improving work efficiency and overcoming the uncertainty of human detection.
3、 Performance characteristics and system composition of Cai Kang DRM-300C penetration microscope:

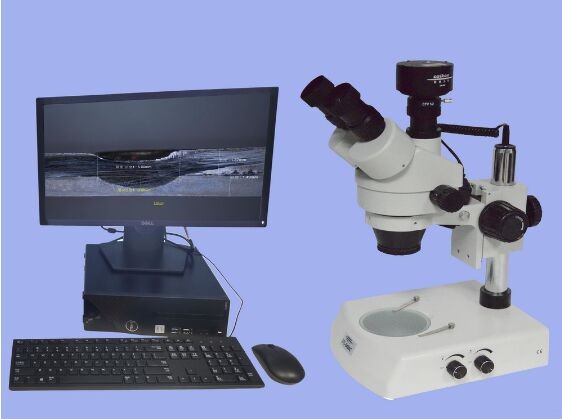

The DRM-30C fusion depth microscope measurement system utilizes an industrial color high-speed camera for image or video acquisition, and a low magnification Cai Kang optical macroscopic microscope for magnification imaging. The images are quickly displayed on the computer, allowing for real-time observation of the fusion depth welding morphology. Special software is used for fusion depth measurement processing, morphology statistical analysis, and printing of the fusion depth analysis report.
