Polarization microscope (geological polarization microscope)

Polarization microscope (geological polarization microscope)

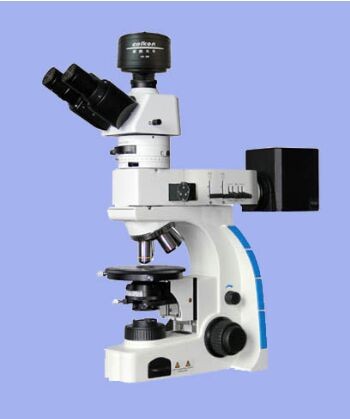

1、 The purpose and characteristics of XPF-770C series polarizing microscope:
The XPF-770 transparent and reflective polarizing microscope adopts the UCIS infinite color difference independent correction optical system, and is a professional experimental instrument for departments such as geology, mineral resources, metallurgy, and related higher education institutions. With the continuous progress of optical technology, the application range of polarizing microscope is also becoming wider and wider. It can be widely used in research and inspection in fields such as geology, chemical engineering, medicine, etc. It can also observe the crystal phase of liquid polymer materials, biopolymers, and liquid crystal materials. It is an ideal instrument for research institutions and higher education institutions to conduct research and teaching. Can be used by users for single polarized light observation, orthogonal polarized light observation, cone light observation, and micrography, equipped with gypsum λ、 mica λ/ 4 test pieces, quartz wedges, and moving rulers are a new type of product with relatively complete functions and good quality. This instrument has scalability and can be connected to a computer to save, edit, and print images.
2、 Performance characteristics:
1. UCIS infinite color difference independent correction optical system, equipped with infinite flat field objective (center adjustable) and φ 20mm wide field eyepiece
2. Coarse and micro coaxial focusing mechanism, adjustable coarse and micro elasticity, with limit locking device, micro grid value: 1 μ M
3. Detachable polarizer, capable of 360 ° polarization direction rotation, with four gears: 0, 45, 90, 135, 180, 225, 270, 315
4. Wide voltage power supply: Transmission lighting, Kohler lighting, 110-240V adaptive wide voltage, 6V20W halogen lamp, continuously adjustable brightness; Reflective lighting: 12V50W halogen lamp lighting, power box wide voltage input, variable light bar, polarizer, filter switcher
