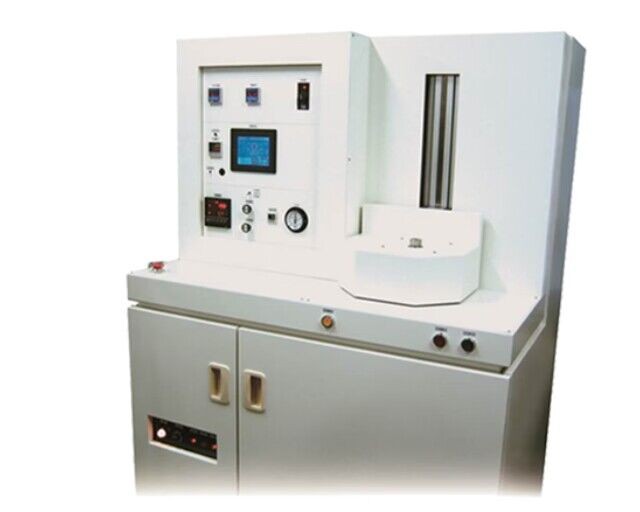

Automatic phase transition point measurement system
The company's automatic phase change point measurement system can quickly heat and cool metal samples between room temperature and up to 1350 ℃. During the heating and cooling process, the phase change point is automatically obtained by measuring thermal expansion and contraction. At temperatures below 0 ℃, liquid nitrogen is used for cooling to obtain a mechanism from 0 ℃ to -150 ℃.
application area
Detect the phase transition point of metal samples
Generate CCT/TTT phase diagram
Equipment characteristics
For sheet samples, the mechanism below zero degrees can be measured;
Heating methods are optional (infrared furnace and high-frequency furnace);
A comprehensive analysis software with comprehensive functions.
Basic parameters
Model: Transmaster - III
Temperature range: -150 ℃ -1350 ℃
Sample size: φ 3mm x 10mm L
High heating rate: 100 ℃/s (room temperature to 1350 ℃)
Large cooling rate: using helium -80 ℃/s (1350 ℃ to 400 ℃)
System size: approximately 1300mmW x 1000mmD x 1700mmH
