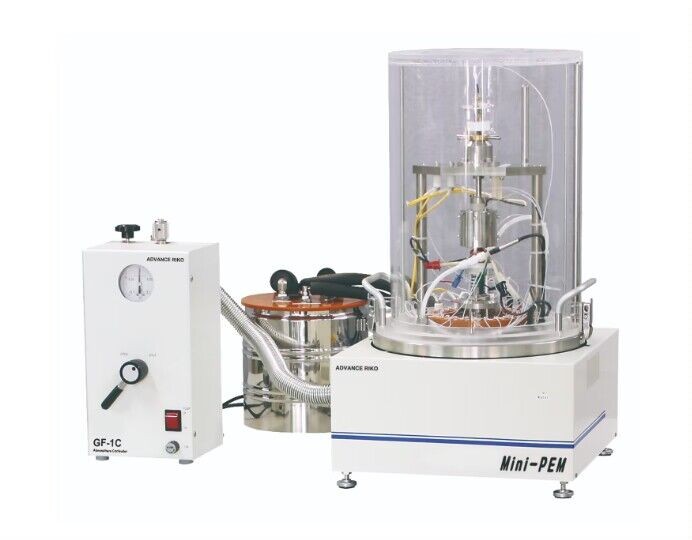

Mini PEM measurement system for small thermoelectric conversion efficiency

Mini PEM measurement system for small thermoelectric conversion efficiency

The Mini PEM small thermoelectric conversion efficiency measurement system launched can measure the amount of electricity generated by thermoelectric materials and the thermoelectric conversion efficiency η。 Thermal electric conversion efficiency η It can be obtained through the generated electricity and heat flux (electricity is obtained through the four probe method; heat flux is obtained through a heat flux meter).
In addition, the thermoelectric conversion efficiency measurement system PEM and the performance evaluation system F-PEM for thermoelectric materials in atmospheric environments can achieve performance evaluation of thermoelectric materials under different conditions.
application area
+Measurement of power generation and heat flow rate;
+Calculate the thermoelectric conversion efficiency of the thermoelectric material module;
+Measure the power generation and heat flux of a single thermoelectric material;
+Performance and lifespan evaluation of thermoelectric materials.
Characteristics of Mini PEM equipment
+It can achieve thermoelectric conversion efficiency by automatically measuring heat flow rate and power generation
+Can achieve measurement of 2-10mm * 1-20mmH for small material blocks
+The high-temperature surface can be heated to 500 ℃
+Easy to operate
Basic parameters of Mini PEM
+Measurable content: thermoelectric conversion efficiency, power generation, heat flow rate
+Controllable temperature range on high-temperature surfaces: 50-500 ℃
+Atmosphere: Vacuum
+Sample size: square 2-10mm * 1-20mm
