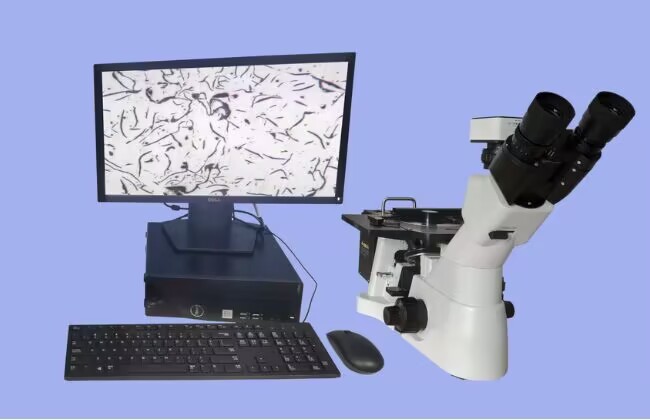

1、 Inverted horizontal metallographic microscope DMM-490C Main uses:
The DMM-490C series inverted horizontal metallographic microscope adopts an infinite far-field achromatic objective and a large field of view eyepiece without magnification chromatic aberration. The high-quality optical system makes the imaging clearer, brighter, and the field of view wider. The body design that meets ergonomic requirements makes your operation more comfortable and relaxed. The simple and innovative appearance is more in line with modern trends. It can be widely used for observation and analysis of metallographic structure in the mechanical industry, mineral analysis and research in the geological and mining department, observation and measurement in electronics and other fields. It is suitable for observing transparent, semi transparent or opaque materials in the electronics, metallurgy, chemical and instrumentation industries, such as metal ceramics, integrated blocks, printed circuit boards, LCD boards, thin films, fibers, coatings, and other non-metallic materials. It is also suitable for observation and analysis in medicine, agriculture and forestry, schools, and scientific research departments. It is also an ideal instrument for research in metallurgy, mineralogy, precision engineering, electronics, and other fields.
2、 Introduction to the main characteristics of the instrument:
1. Adopting an excellent infinite distance optical system, providing excellent optical performance, designing a compact and stable high rigidity body, meeting the seismic requirements of the microscope;
2. Low hand operation reduces fatigue during long-term operation. The instrument body is painted in full white, which is beautiful and elegant. The instrument connection part is fixed with internal hexagonal screws, without any exposed screws. It is equipped with a loading platform extension plate to expand the application space;
3. Adopting excellent infinite distance optical system, ultra wide eyepiece observation tube, and φ 22mm wide field eyepiece, equipped with infinitely long working distance metallographic objective, without cover glass design;
4. Lighting system: equipped with a variable aperture and a center adjustable field of view aperture reflective Kola illuminator, adaptive wide voltage 100V-240V, 12v50W halogen lamp, effectively protecting and extending the service life of the light bulb;
4. Imported high-definition CCD chip camera, high pixel digital imaging system, computer display imaging is real and clear, with multiple cameras and functional software to choose from.
