Hyperspectral Industrial Online Sorting System - SpecimONE

Hyperspectral Industrial Online Sorting System - SpecimONE
SpecimoNE is a hyperspectral imaging system used for industrial sorting, which can meet the requirements of high-speed and real-time industrial online detection and sorting. Its release has completely revolutionized the adaptability of SPECIM hyperspectral imaging technology in machine vision fields such as industrial sorting in China, helping to make the use of SPECIM FX series hyperspectral cameras more convenient and widespread in industrial sorting, resource recovery, and other fields.
With the help of SpecimONE, machine vision system integrators, equipment manufacturers, and other OEM users can create and execute classification models based on the spectral feature information of target materials collected by SPECIM hyperspectral cameras without the need for in-depth understanding of spectral imaging technology and programming techniques. These classification models can be applied to industrial machine vision fields such as real-time online sorting, product quality online detection, and production process monitoring.
SpecimoNE application areas
The industrial online sorting software SpecimoNE and SPECIM FX series industrial hyperspectral cameras are widely used in machine vision detection fields such as garbage classification, black plastic sorting, food detection, industrial sorting, medical pharmaceuticals, precision agriculture, cultural relic protection, criminal investigation and testing, and environmental monitoring.
To provide complete hyperspectral imaging solutions for industrial machine vision system integrators, helping industrial users significantly shorten the time it takes for spectral equipment to enter the market. For detailed information on the principles and application cases of Finnish SPECIM FX series hyperspectral camera technology, please refer to: https://qd-china.com/zh/pro/detail2/2/1912091743351/1910202114894
Characteristics of the SpecimoNE system
Provide a complete solution to help industrial users shorten the time to market of their hyperspectral sorting equipment
Compatible with mainstream industrial standards and seamlessly integrated with machine vision systems such as Halcon and Sherlock
Powerful and fast classification algorithms: PLS-DA, PCA, SAM, and support for MROI, suitable for a variety of industrial machine vision online sorting applications
• Specim's proprietary platform ensures full compatibility and efficient operation between Specim FX series hyperspectral cameras, modeling and real-time detection software, and efficient data processing units
• Supports multiple models of hyperspectral cameras such as Spectrum FX10 (400-1000nm), Spectrum FX17 (900-1700nm), and Spectrum FX50 (2.7-5.3um)
performance parameter
Supports cameras
FX10/FX17/FX50
operating system
Specific CameraOS
Operation mode
Real time processing and data collection
real-time processing
Applications created using Specifically
user interface
CameraOS webUI
On-chip system
NVIDIA Jetson Xavier AGX
storage space
256G
data format
Envi compatible Spectrum dataset
Camera interface
CameraLink (SDR connector)
Dimensions (W x L x H)
190 × 300 × 90mm
weight
4.6kg
button
Power and reset buttons
authentication
CE, FCC, RoHS3
Operating temperature
-10 ° C...+60 ° C
Operating humidity
95% (40 ° C, non condensing)
interface
2 x 1 Gigabyte Ethernet (RJ-45), 2 x USB 3.0, 1 x RS-232, 1 x RS-485, 1 x CAN bus with transmitter CAN bus
GigE, USB3.0, RS-232/485, CAN
External trigger
4 x isolated inputs or shaft encoders, 4 isolated outputs
input voltage
9-36v
GigE Vision
Compatible, supports RGB8, Mono12, or Mono12 packed

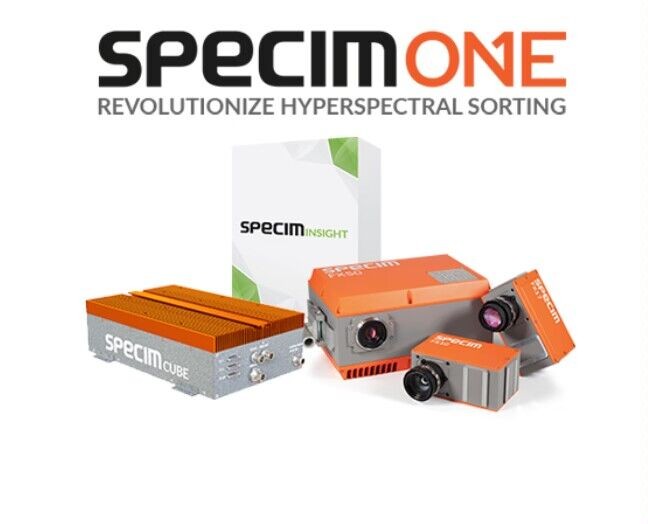

SpecimoNE system composition (three parts)
• Spectrum FX series industrial hyperspectral cameras
• SpeciminSight offline modeling software to establish classification models for industrial sorting applications
Powerful image processing unit SpecimCUBE, running classification models in real-time
★ Spectrum FX series industrial hyperspectral cameras
Spectrum FX series hyperspectral cameras are high-speed cameras designed specifically for industrial use. The high frame rate of the camera can meet the high speed requirements of industry, and the sturdy structure and compact size can achieve flexible industrial installation scenarios.
The Spectrum FX series industrial hyperspectral cameras can provide accurate spectral information for detecting and classifying various materials. Non contact and non-destructive optical methods are used to image the entire surface of target materials, and the collected data is sent in real-time to the Spectrum CUBE for further processing.
√ Wide spectral range coverage: FX10 (400-1000nm), FX17 (900-1700nm), FX50 (2.7-5.3 μ m) ;
Superior data quality: high signal-to-noise ratio and high sensitivity;
√ High frame rate: up to 15KHz;
√ High data consistency: convenient for updating and replacing
