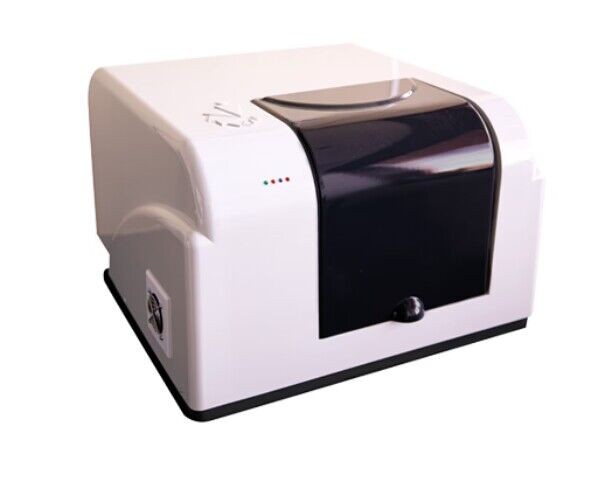

QLS-Scope, a fast and multi angle 3D fluorescence microscope

The QLS scope, newly launched by Planelight in Spain, is a brand new high-speed optical imaging platform. This new generation of optical microscope can not only perform the work of traditional optical microscopes, but also expand the size of supporting samples (25 × 25 × 25 mm), greatly improving the speed of scanning samples on optical films. It is a large-sized, high-quality, and high-speed optical film.
As a new generation of optical film system, QLS scope supports automatic replacement of objective lens, automatic focusing, fast sample changing, and flexible switching of observation room according to sample size, achieving the goal of saving expensive imaging solution while adapting to various sizes of samples. QLS scope provides multiple solutions in the acquisition mode, supporting five modes: single angle, dual angle, four angle, SPOT, and Z-Motor, providing you with a comprehensive imaging solution for large sample tissues.
Qscan high-speed scanning technology:
QLS scope has high-speed scanning technology and is an adjustable width optical film system. Can provide a uniform light film covering the entire field of view, with a more uniform lighting effect and without producing multi angle shadows that are prone to occur in multi film systems. It is precisely because QLS scope has such a uniform and bright light film that its imaging speed is very fast, completing single angle light film acquisition in just a few minutes.
Single acquisition can shorten 3 minutes
◎ Uniform variable light film, providing more uniform illumination light
The thickness of the optical film is only 1 μ M
SPOT no dark angle high-resolution technology:
For large sample sizes, transparency efficiency has always been a major obstacle to imaging quality. QLS scope is equipped with unique SPOT technology, which processes images from a single rotation of 0.72 ° and accumulates 500 angles. Minimize the impact of imaging quality degradation caused by defects in the sample preparation process as much as possible, and present you with a more uniform and detailed optical image.
Product features:
Support five imaging modes: single angle, dual angle, four angle, SPOT, and Z-Motor;
◎ It can support large samples of 25 x 25 x 25 mm;
Equipped with focal plane correction, it will not lose focus during the acquisition process;
High speed collection, information collection for a single 1 cm sample only takes 3 minutes;
During the collection process, there is no vibration problem with the sample, which is friendly to softer sample
◎ Uniform and infinitely adjustable width film, with a film thickness of only 1 μ M;
The objective lens can be automatically switched;
Support organic and inorganic imaging liquids;
Sample loading is simple and replacement speed is fast.
