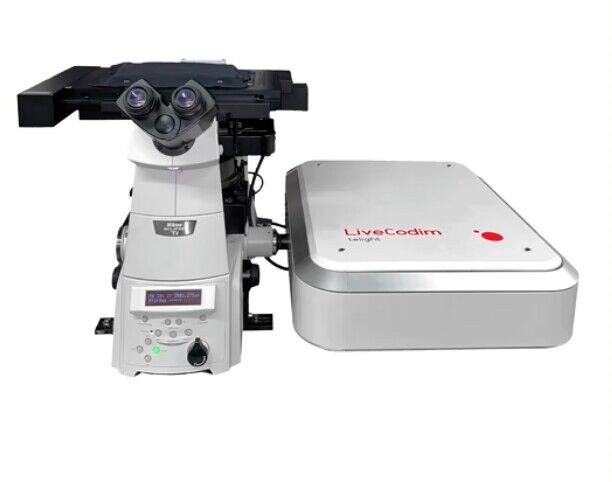

Traditional fluorescence microscopy is affected by the optical diffraction limit, with a high resolution of 200 nm, making it difficult to observe the ultrastructure in cells. LiveCodim is a modular super-resolution confocal microscopy system that can adapt to the vast majority of inverted fluorescence microscopes, upgrading existing inverted microscopes into imaging systems with three major modes: wide field, confocal, and live cell super-resolution. LiveCodim provides real-time live cell super-resolution confocal imaging with a resolution of up to 120 nm through a special conical diffraction microscope - a powerful beamformer, without the need for any additional sample manipulation. Combined with its low phototoxicity and convenient and fast operating system, it is very suitable for capturing fluorescence imaging.
Product advantages
·Ultra high cost-effectiveness: modular super-resolution, cost saving, compatible with the vast majority of inverted microscopes
·XY axis ultra-high resolution:<120 nm
·Z-axis depth imaging: equipped with z-stack imaging capability, with a high imaging depth of 50 μ M
·Live cell imaging: low phototoxicity and photobleaching, suitable for live cell imaging
·Simple sample preparation: The sample does not require special treatment or special dyes
·Fully automatic software: Fully automatic adjustment of various parameters, simple and easy to use
main parameter
·XY axis resolution:<120 nm
·Z-axis resolution:<500 nm
·Z-axis imaging depth: 50 μ M
·Imaging field of view: 80 in confocal mode μ M * 80 μ m. In super-resolution mode: 50 μ M * 50 μ M
·Imaging modes: wide field, confocal, LiveCodim super-resolution
·Four color imaging channels: 405 nm, 488 nm, 561 nm, 640 nm (can be increased according to demand)
